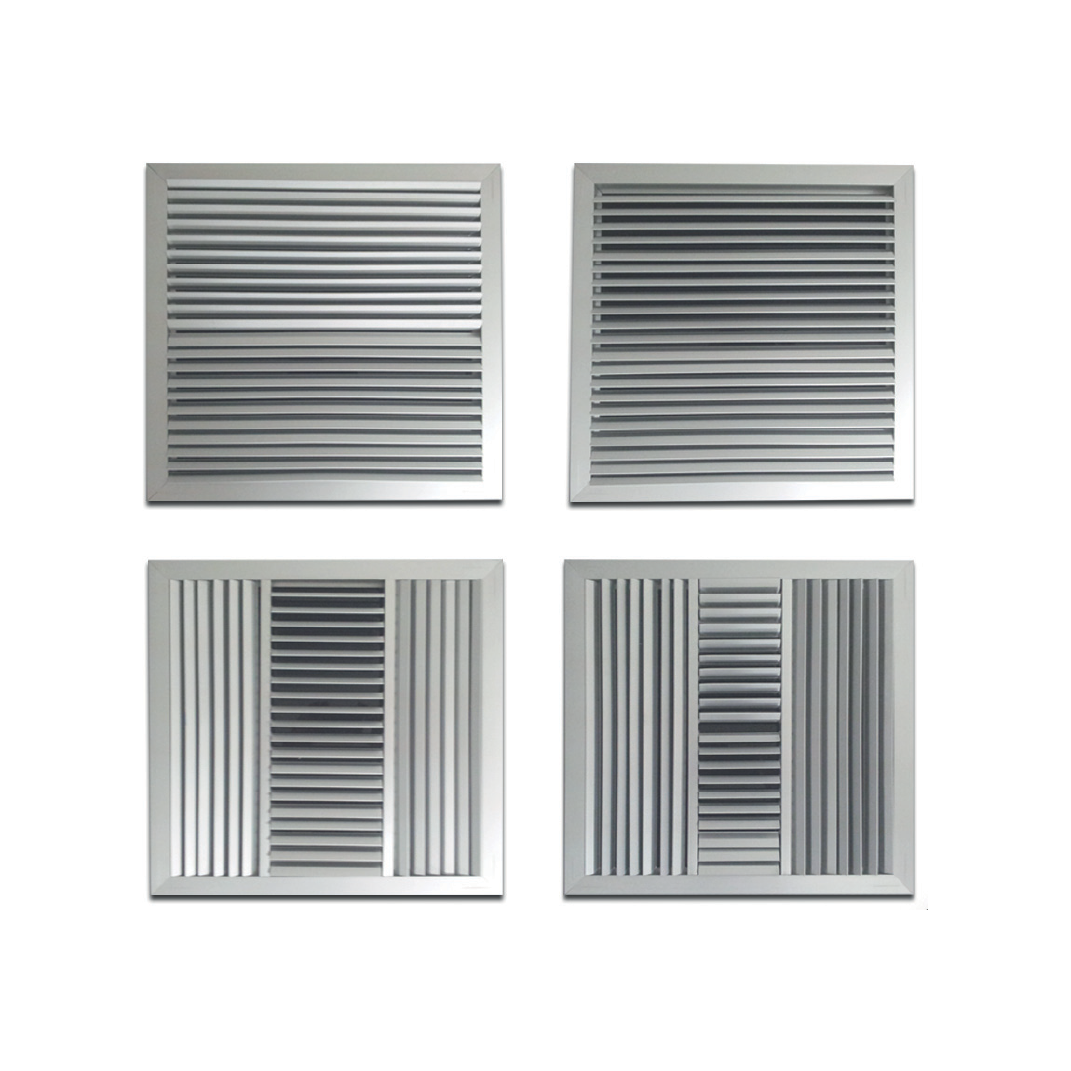

SQUARE SUPPLY CEILING AND SIDEWALL DIFFUSERS

A Square Ceiling, high and low sidewall diffuser with
multiple air flow patterns and with a volume control
damper.
• The frame and blades are extruded aluminium alloy
and elctrostatic polyester powder coated with white
finish.
• The frame and blades have a typical wall thickness
of 1/ 16″ .
• Angle-curved blade which are permits individually
adjustable (by hand) from horizontal to vertical , or in
between , in locations where periodic changes are
required.
• The diffuser projects 3/ 16″ from the mounting surface.
• The unit size increases in 2 inches increments,
beginning with 6 in. x 6 in . as the smallest available.
