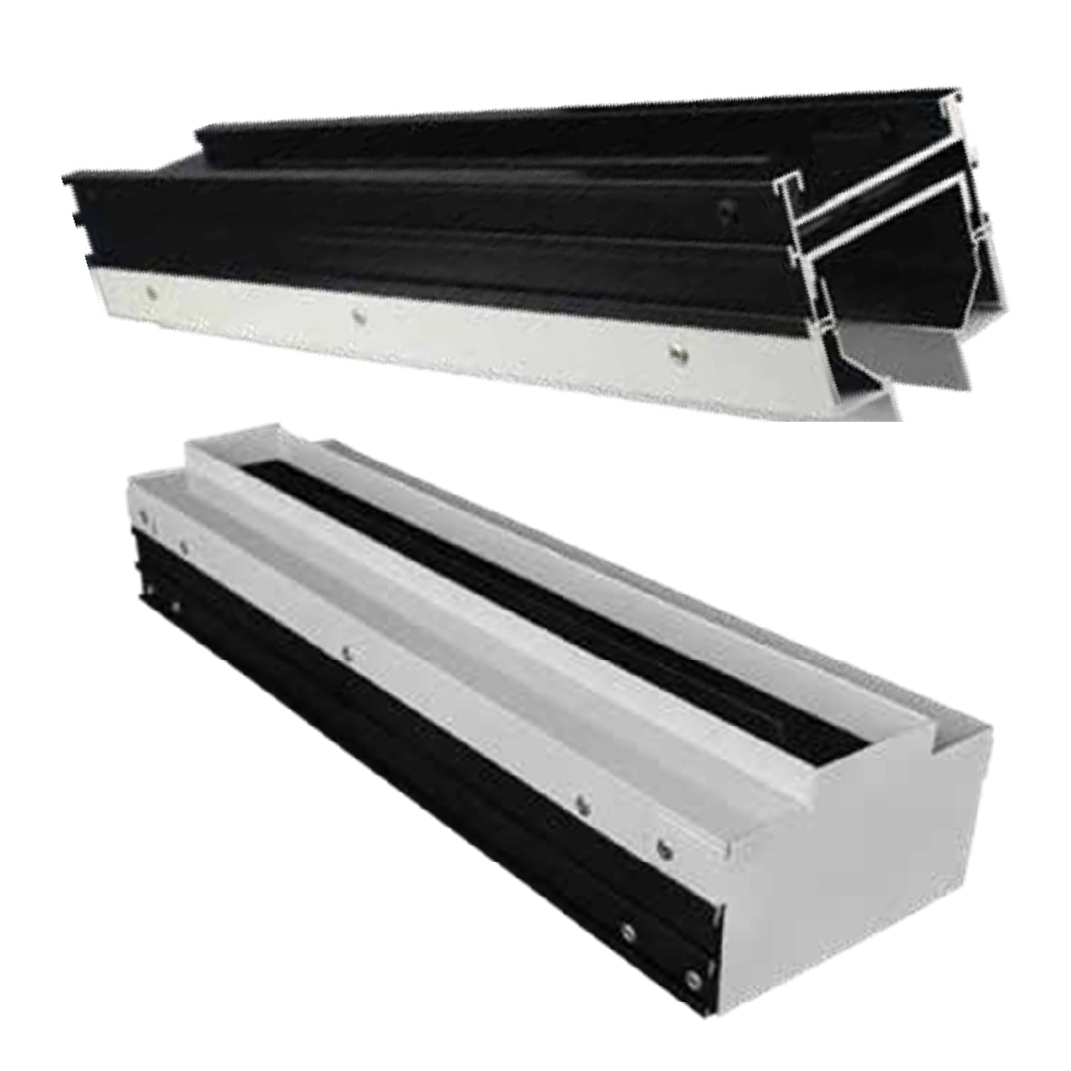

FLOW BAR DIFFUSER
- AGF AFBD-3 model Flowbar Diffuser is specially designed for hidden flange application. Its enhanced performance coupled with special design that blends seamlessly into the ceiling makes it a fine choice for interior designers to suit contemporary architectural demands.
- It is designed for ceiling mounted applications.
- Side and center flange will remain invisible for both single and double slot opening. The view of a black opening into the ceiling gives a high-class finish to the building interiors.
- Flowbar Diffuser can easily handle huge air volumes per slot opening without increasing the pressure drop or NC level as compared to regular slot diffuser.
- AFBD-3 model is equipped with an adjustable flat deflector profile. It can be moved horizontally on both directions (left or right) which helps in discharging air in a horizontal pattern. Air tends to attach itself with the ceiling due to Coanda effect as it travels horizontally.
- Slot opening up to 2 slots are available.The deflector is sandwiched between U-Channels to control the direction of air flow. The U channels are spring loaded for smooth operation of deflector.
- Special side deflectors are provided to channel airflow smoothly towards the opening thereby reducing the pressure drop significantly and subsequently the noise level.
- White frame with black interior makes the finish more elegant. Applications include shopping malls, exhibition
- halls, office spaces, airports, hotels and so on.
