Description

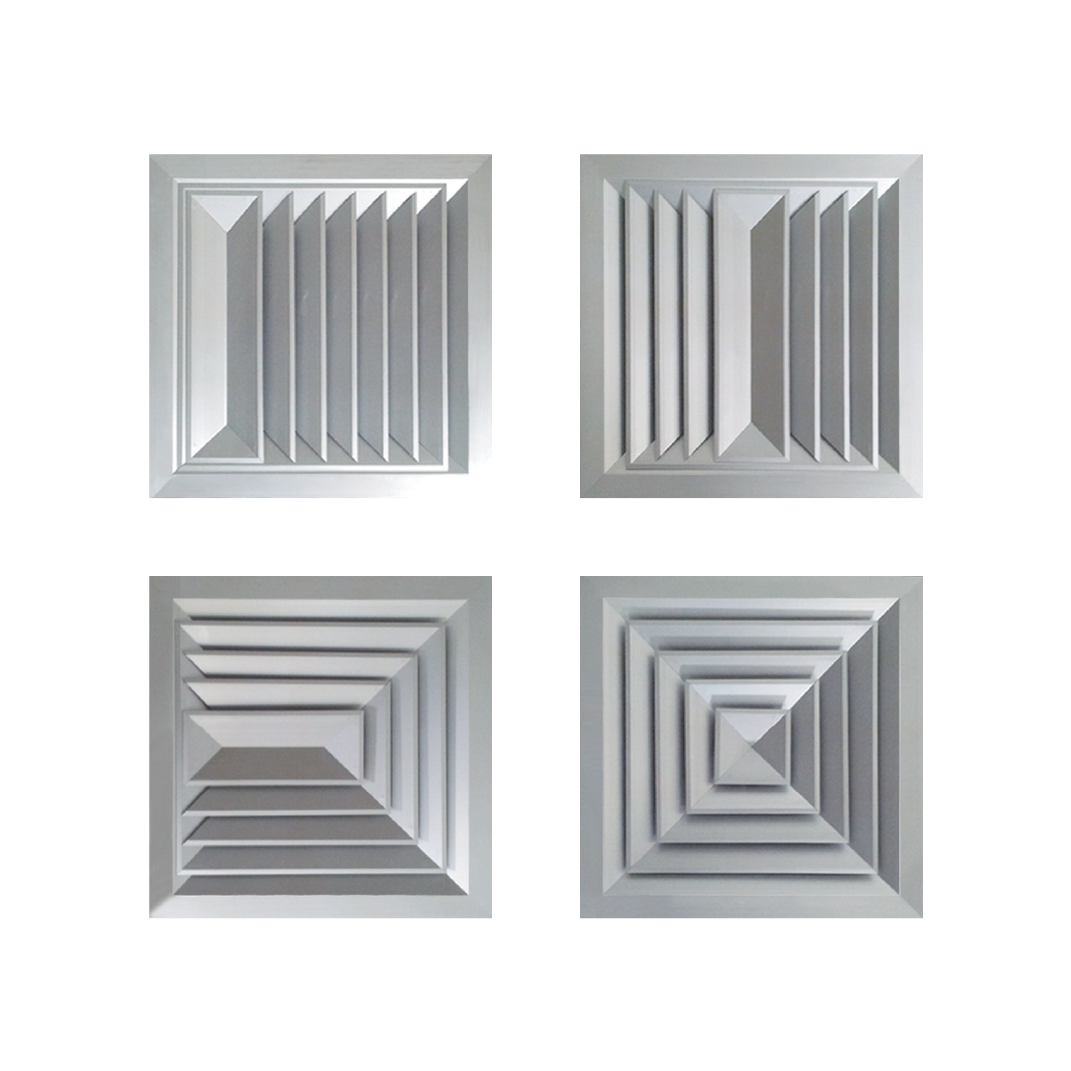

A Square Ceiling Diffuser with multiple air flow patterns and with volume control damper. • The frame and blades are extruded aluminium alloy and are polyester powder coated with a white finish. • The frame and blades have a typical wall thickness of 1 /16". • The inner core of the diffuser is fully removable for easy installation. It is held in place with four machine screws and two spring steel cl ips which together centre the core in the frame. • The ceiling diffuser projects 3/16" from the mounting surface. • The unit size increases in 3 inches inc rements beginning with 6 in. x 6 in. as the smallest available
