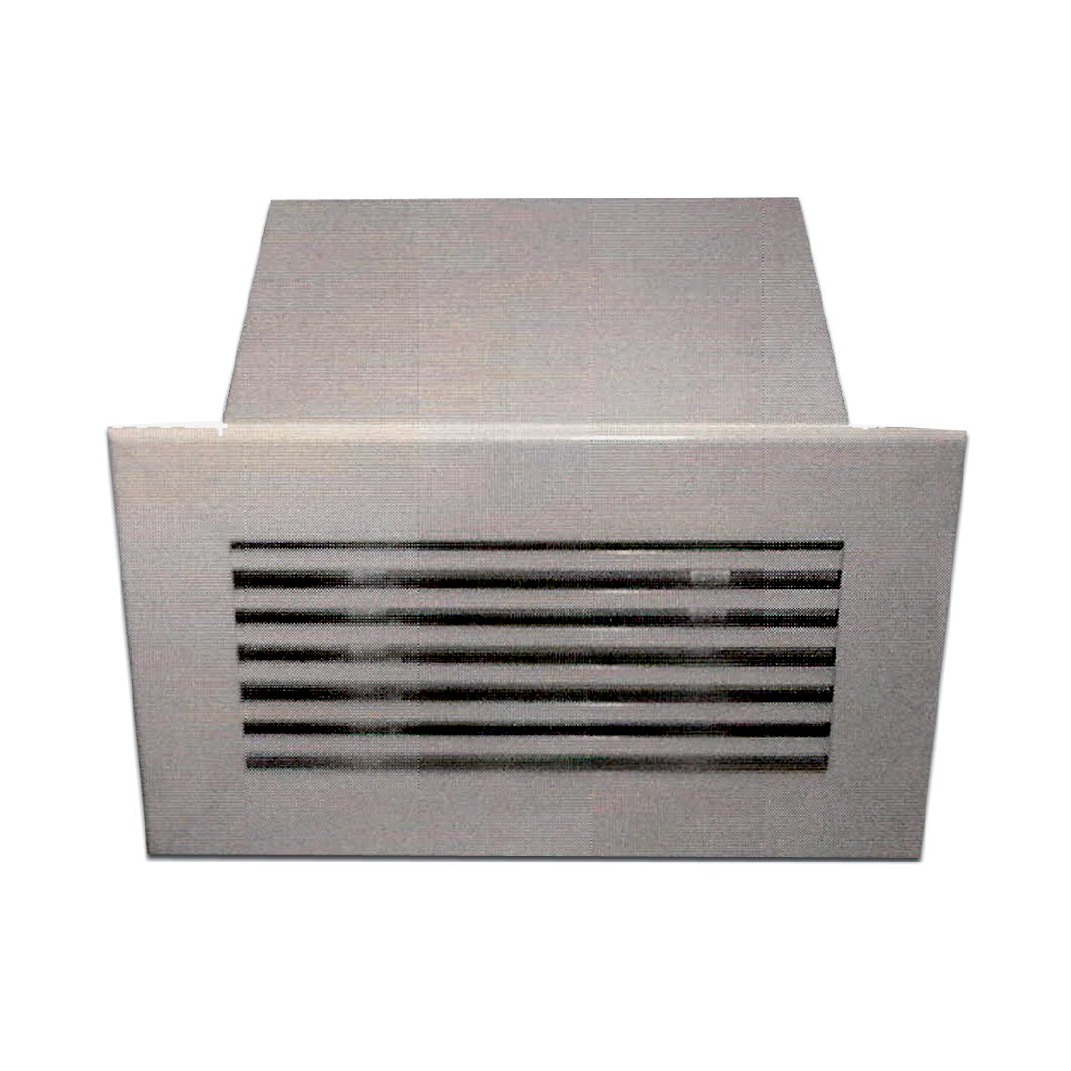

SECURITY GRILLES

• The frame and blades are extruded
aluminum alloy and are polyester powder
coated with a white finish
• The frame has a Typical wall thickness of
1/16″
• The blades are spaced ½” on center and
are¼” thickness at the face
• Mullion bars across the blades provides
additional strength
• An opposed blade damper attached and
operator is easily adjustable through the
face with a screw driver

• The damper frame is separated from the
blades with PVC bushings eliminating
corrosion and vibration
• Standard finish is white color painted
under electrostatic polyester powder
coated system. Other colors are available
on reque~t
• The fram of whole assembly is welded
with G.I sheet 1.2 mm thick casing
• This security is suitable for wall mounting
where the high grade of security is
needed
• Color-9016
